Higher Torque Reciprocating Linear Actuator JQDML 24V 120RPM 2-8CM

Description

Product Overview

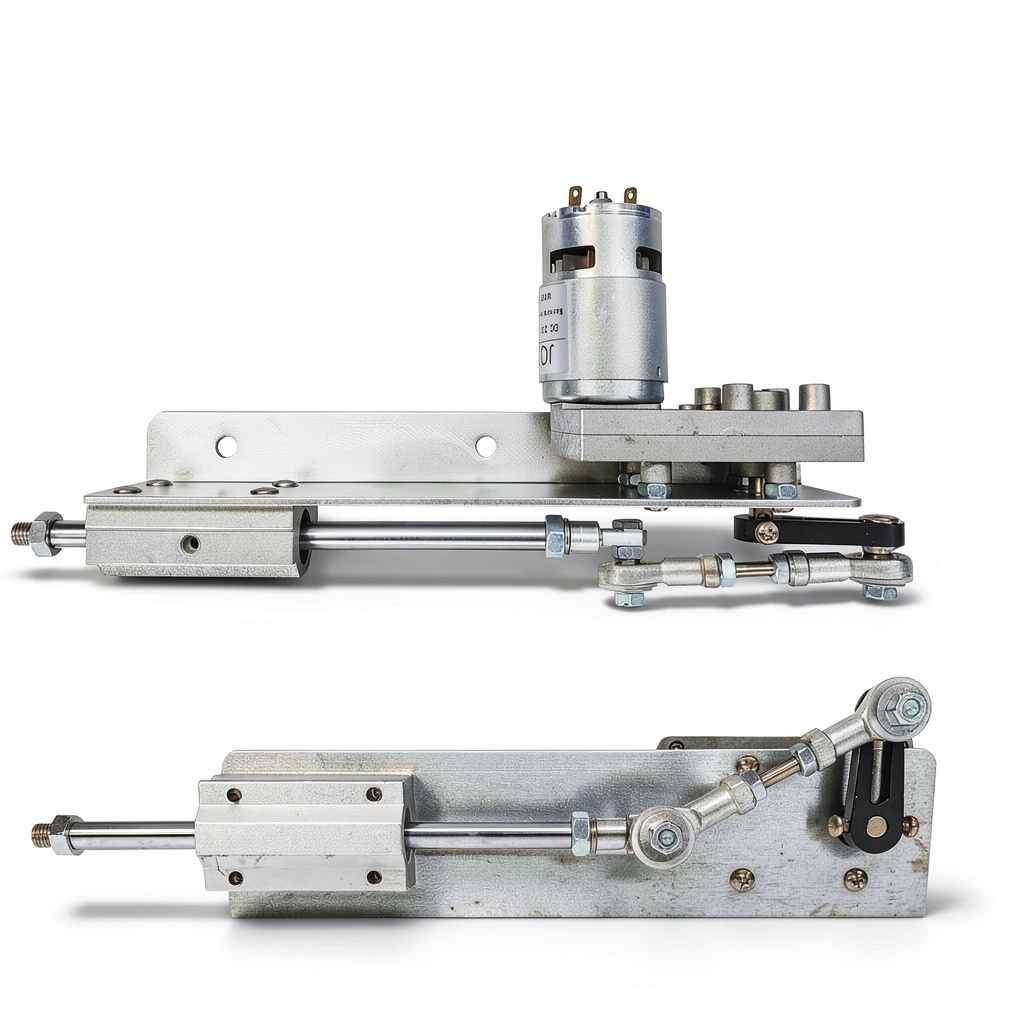

The JQDML Higher Torque Reciprocating Linear Actuator is engineered for precision motion control in demanding industrial and hobbyist environments. Powered by a 24 V DC motor, it achieves a maximum speed of 120 RPM while providing a peak torque of 40 lb·in, making it suitable for applications that require both speed and strength. The actuator features an adjustable stroke length from 2 cm to 8 cm, allowing users to fine‑tune travel distance for a wide range of mechanisms. Constructed from high‑grade steel and aluminum alloys, the internal components are machined to tight tolerances, ensuring smooth reciprocating motion and long‑term reliability.

Key specifications include a compact footprint of 14.72 × 6.34 × 4.09 inches, a weight of 3.68 lb, and a robust M8 screw mounting interface that simplifies integration into existing frames or custom builds. The package includes one reciprocating linear actuator, a variable‑speed control regulator, and two pre‑terminated cables, providing everything needed for rapid deployment.

Usage

This actuator excels in a variety of DIY and professional settings. Hobbyists building arcade coin pushers can rely on its consistent speed and torque to move coin trays reliably. Engineers conducting material bending tests benefit from the precise stroke control, enabling repeatable deformation cycles. The device also serves educational labs focused on linear motion studies, where students can experiment with speed regulation and load handling. Its brush‑foot design at the motor base facilitates secure mounting on metal plates, wooden boards, or 3D‑printed brackets, making it adaptable to diverse installation scenarios.

Because the actuator operates on a standard 24 V supply, it integrates seamlessly with common power modules, battery packs, or solar‑charged systems. The included speed regulator allows users to dial in the exact RPM required for their application, from gentle slow‑motion movements to rapid reciprocation. Whether the goal is to automate a small‑scale production line, prototype a new mechanical concept, or enhance a robotics project, this linear actuator provides the flexibility and performance needed.

Why Choose Us

Choosing the JQDML Higher Torque Reciprocating Linear Actuator means selecting a product backed by rigorous quality assurance processes. Each unit undergoes multi‑stage testing, including torque verification, speed calibration, and endurance cycling, to guarantee that it meets or exceeds industry standards. The actuator’s design incorporates a sealed motor housing that protects internal components from dust and moisture, extending service life even in harsh workshop environments.

Our commitment to customer satisfaction includes a responsive technical support team ready to assist with wiring diagrams, mounting instructions, and performance tuning. We also provide a one‑year warranty covering manufacturing defects, giving users confidence in the durability of their investment. By focusing on both engineering excellence and after‑sales service, we deliver a solution that not only performs but also supports the long‑term success of your projects.

Key Features

• High torque output of 40 lb·in enables handling of demanding loads.
• Adjustable stroke from 2 cm to 8 cm provides versatile travel range for many applications.
• Variable speed control up to 120 RPM lets you fine‑tune motion dynamics.
• Compact 24 V design simplifies power integration and reduces system footprint.
• Robust M8 mounting and brush‑foot base ensure secure, easy installation.
• Includes speed regulator and pre‑terminated cables for quick setup.
• Dedicated customer support and one‑year warranty for peace of mind.

FAQ

What is the maximum load this actuator can handle?

The actuator is rated for a maximum torque of 40 lb·in, which translates to a practical linear load capacity of approximately 40 lb when operating at its peak speed. For heavier loads, slower speeds can be used to maintain reliable performance.

Can the stroke length be changed after installation?

Yes. The stroke is adjustable via a simple set‑screw mechanism on the actuator head. By loosening the screw, you can slide the piston to the desired position within the 2 cm‑to‑8 cm range, then tighten the screw to lock it in place.

Is the actuator compatible with other voltage supplies?

The unit is designed specifically for a 24 V DC supply. Using a different voltage may affect speed, torque, and overall reliability. If a different voltage is required, a compatible step‑down or step‑up converter should be used, but performance cannot be guaranteed.

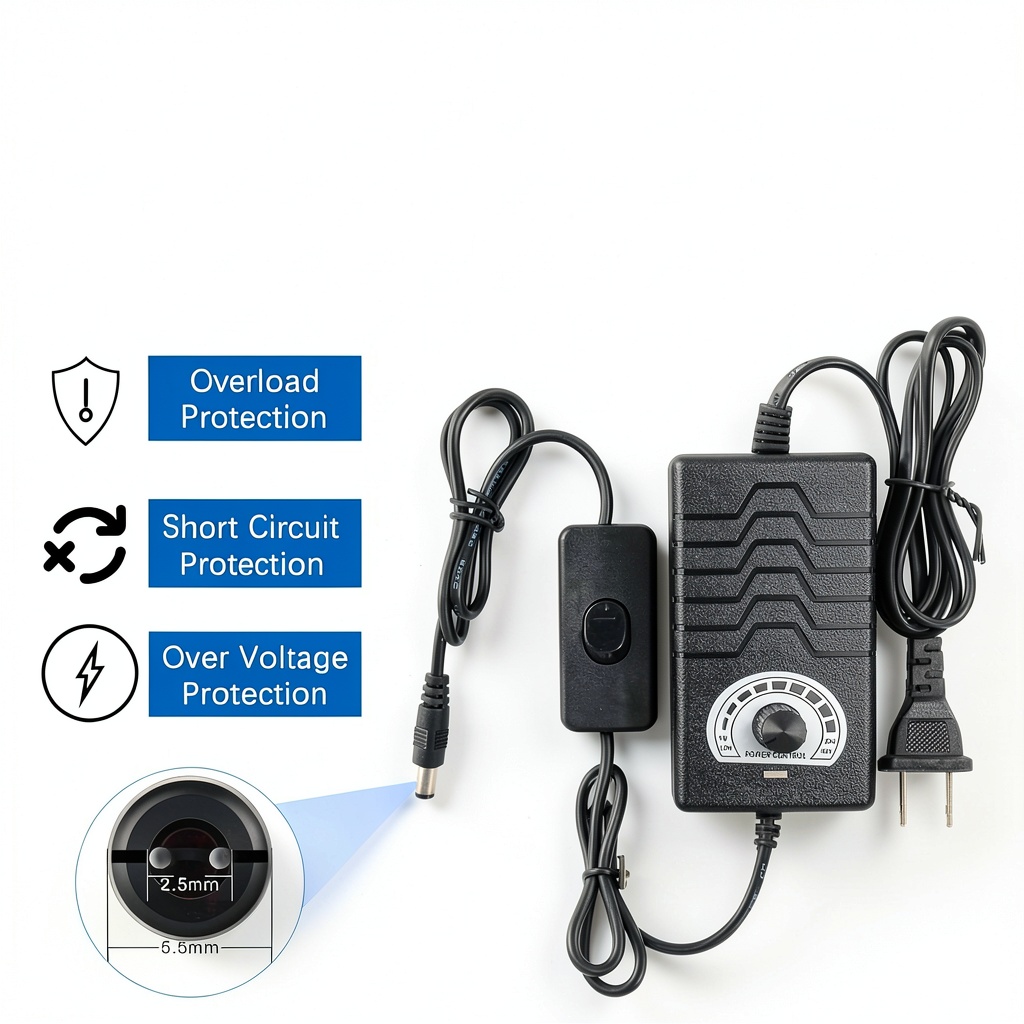

How do I connect the speed regulator?

The speed regulator connects to the actuator via the two supplied cables. Simply plug the cable connectors into the regulator’s input terminals, then attach the other ends to the actuator’s brush‑foot terminals. Adjust the knob on the regulator to set the desired RPM.

What maintenance is required?

Periodic inspection of the brush‑foot contacts and cleaning of any dust buildup will help maintain optimal performance. The sealed motor housing reduces the need for internal lubrication, but external components should be checked for wear and tightened as needed.
